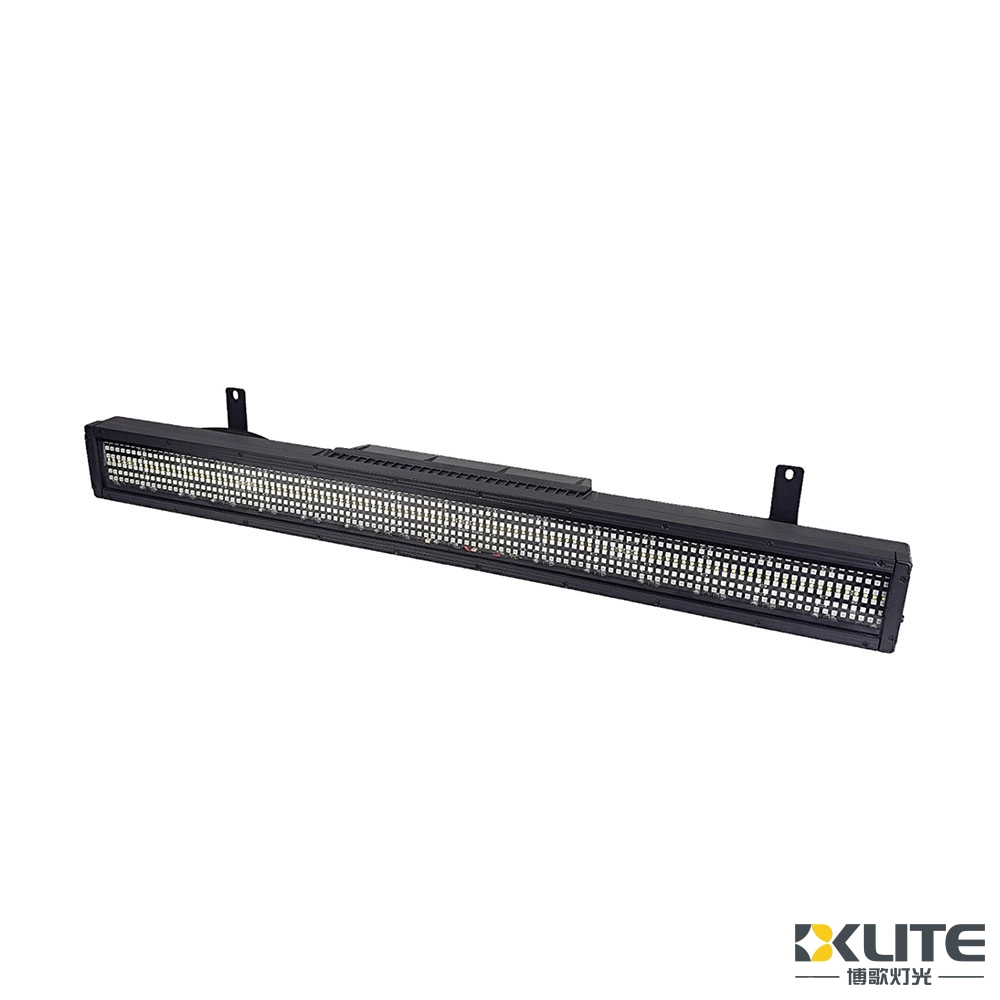

IP66 672pcsx0.5w RGB 112pcsx3w CW LED strobe bar light
Voltage: AC100 ~ 240V 50/60HZ
Power: 420W
Light Source: 672 672pcsx0.5 RGB LED pcs x CW LED
Control mode: DMX512, self-walking, master-slave, voice control, with RDM function.
7CH/15CH/17CH/21CH/33CH/39CH/65CH/68CH/70CH/112CH/117CH
Brand
BKlite
Power
420W
Light source
672pcsx0.5 RGB LED 112pcs x3WCW LED
Input voltage
AC100-240V 50-60HZ
Waterproof rating
IP66
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
Water proof
IP66
Channels
7CH/15CH/17C/21CH/33CH...
Light source
672 × 0.5W RGB LEDs, 112 × 3W CW LEDs
Power
420W
Mode
DMX512
More parameters
| Specification | Details |
| Voltage | AC100-240V 50/60Hz |
| Power | 420W |
| Light Source | 672 × 0.5W RGB LEDs, 112 × 3W CW LEDs |
| Control Mode | DMX512, Auto, Master-Slave, Voice Control, RDM Function |
| Channel Modes | 7CH / 15CH / 17CH / 21CH / 33CH / 39CH / 65CH / 68CH / 70CH / 112CH / 117CH |

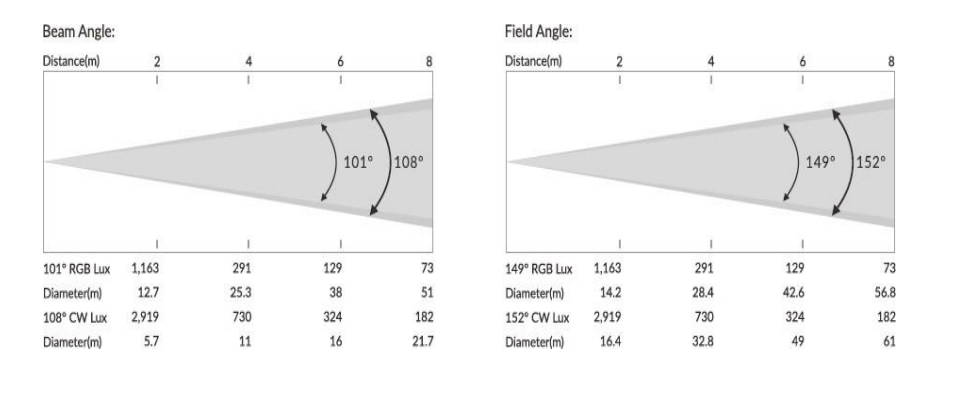

| Beam Angle | 101° (RGB), 108° (CW), 149° |
| Field Angle | 152° (CW) |
| Dimmer | 0-100% smooth dimming; High output strobe effect |
| Operating Temperature | -30°C to 50°C |
| Strobe Frequency | 1-30Hz |
| Appearance | Metal, Black |
| Power In/Out | Waterproof Power Connector In/Out |
| Connection | DMX512 |
| IP Grade | IP66 |
| Net Weight (N.W.) | 8.1KG |
| Features | 32 RGB LED zones with individual control, 16 CW LED zones with individual control, Outstanding color mixing effect |
| Safety Rope | Hanging points |
| Packaging | Carton (2-in-1) & Flight Case (4-in-1) |
| Fixture Dimensions | 482 × 178 × 243mm |
| Net Weight | 11.2kg |
Product Details
Voltage: AC100 ~ 240V 50/60HZ
Power: 420W
Light Source: 672 672pcsx0.5 RGB LED 112pcs x3W CW LED
Control mode: DMX512, self-walking, master-slave, voice control, with RDM function.
7CH/15CH/17CH/21CH/33CH/39CH/65CH/68CH/70CH/112CH/117CH
Beam Angle: 101° (RGB), 108° (CW), 149°
Field 152° (CW)
Dimmer: 0-100% smooth dimming; High output strobe effect
Operating temperature: -30 ~ 50 degrees
Strobe frequency: 1 ~ 30 Hz
Appearance: metal, black,
Power In/ Waterproof Power Connector in/out
Connection: DMX512
IP grade: IP66
N.W.: 8.1 KG
Features : 32 RGB LED zones with individual control
16 CW LED zones with individual control
Outstanding color mixing effect
