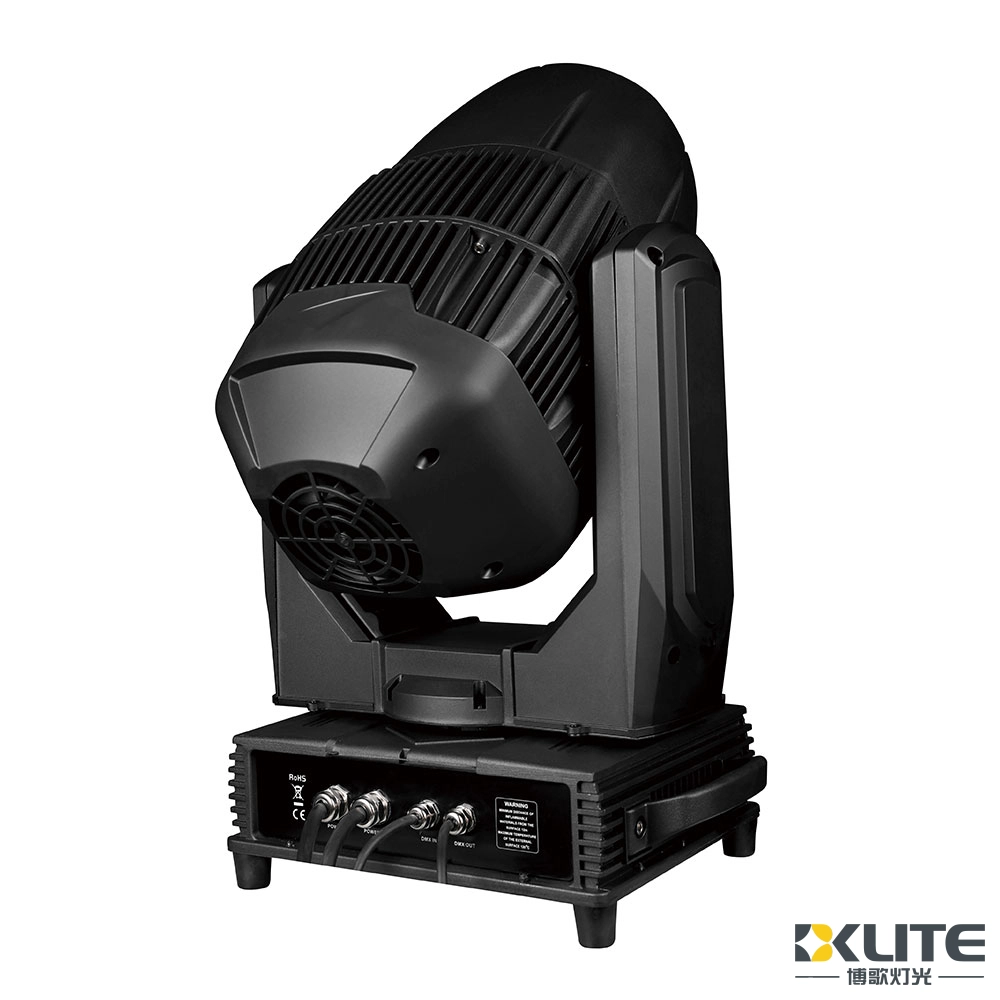

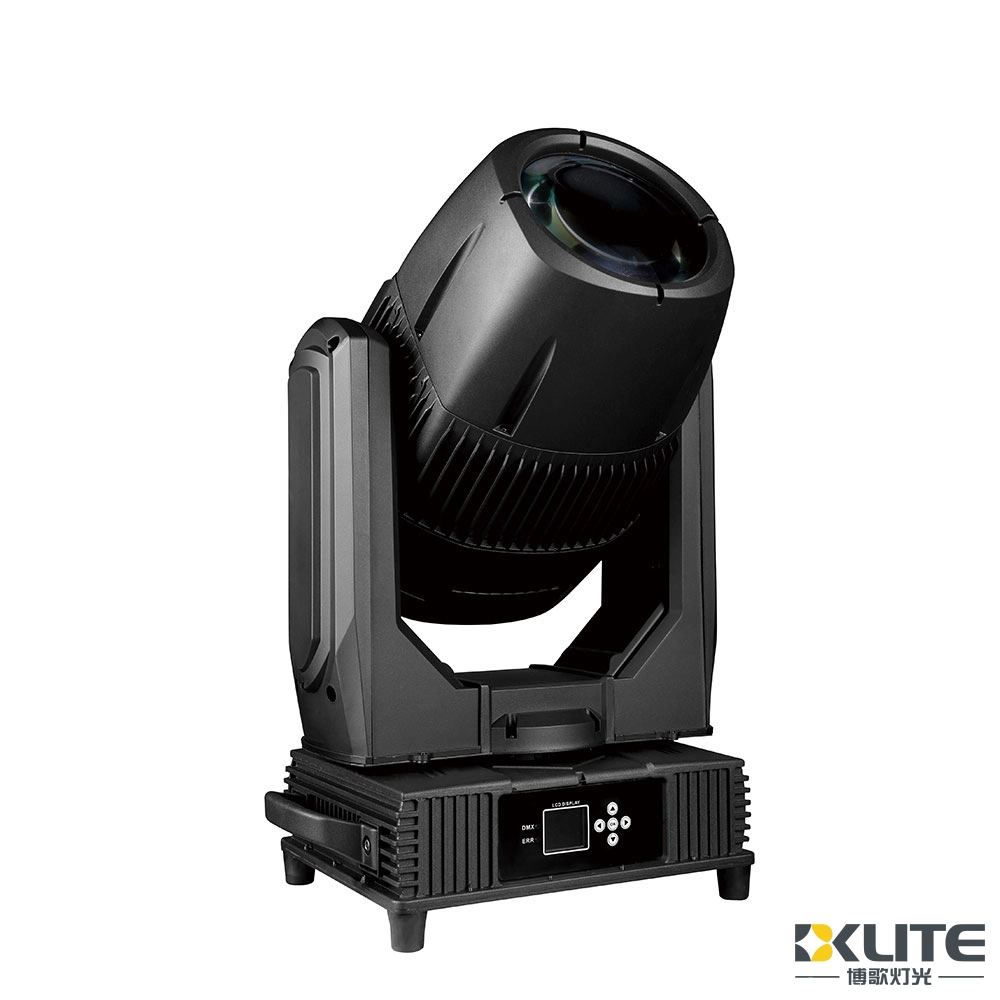

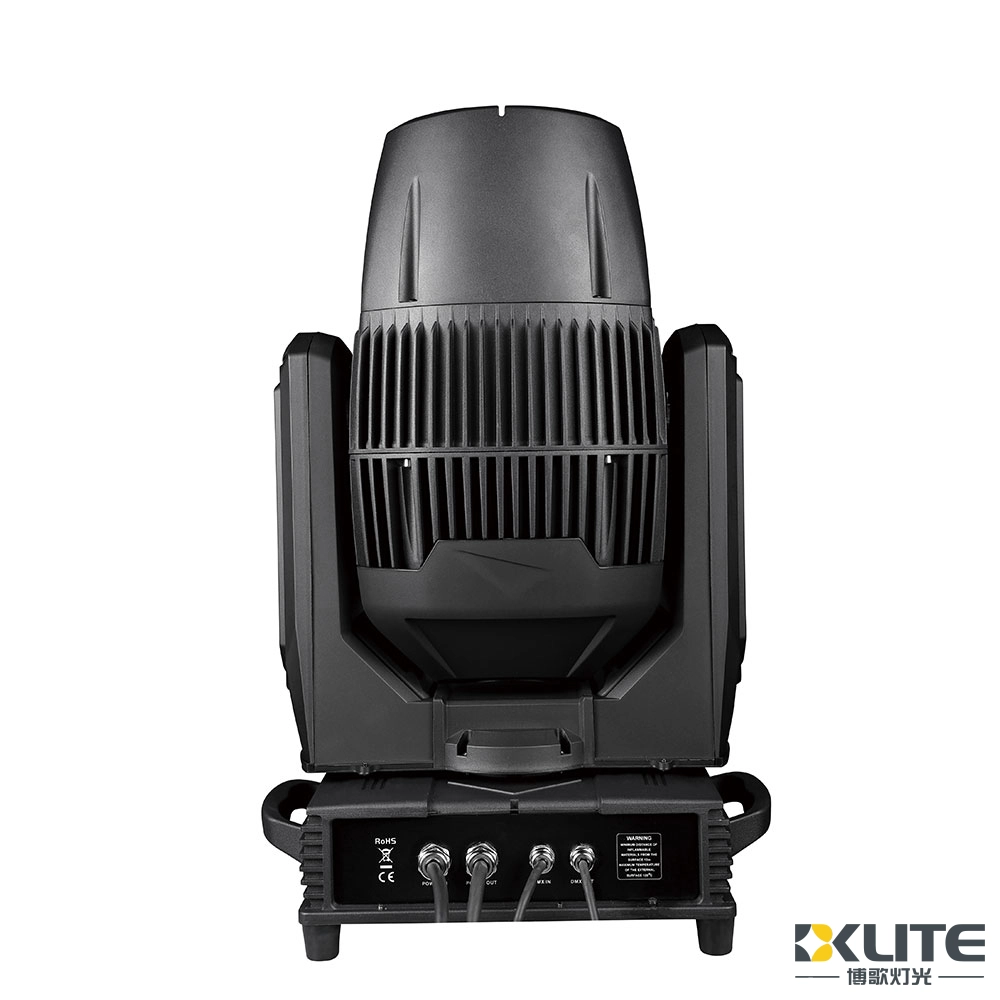

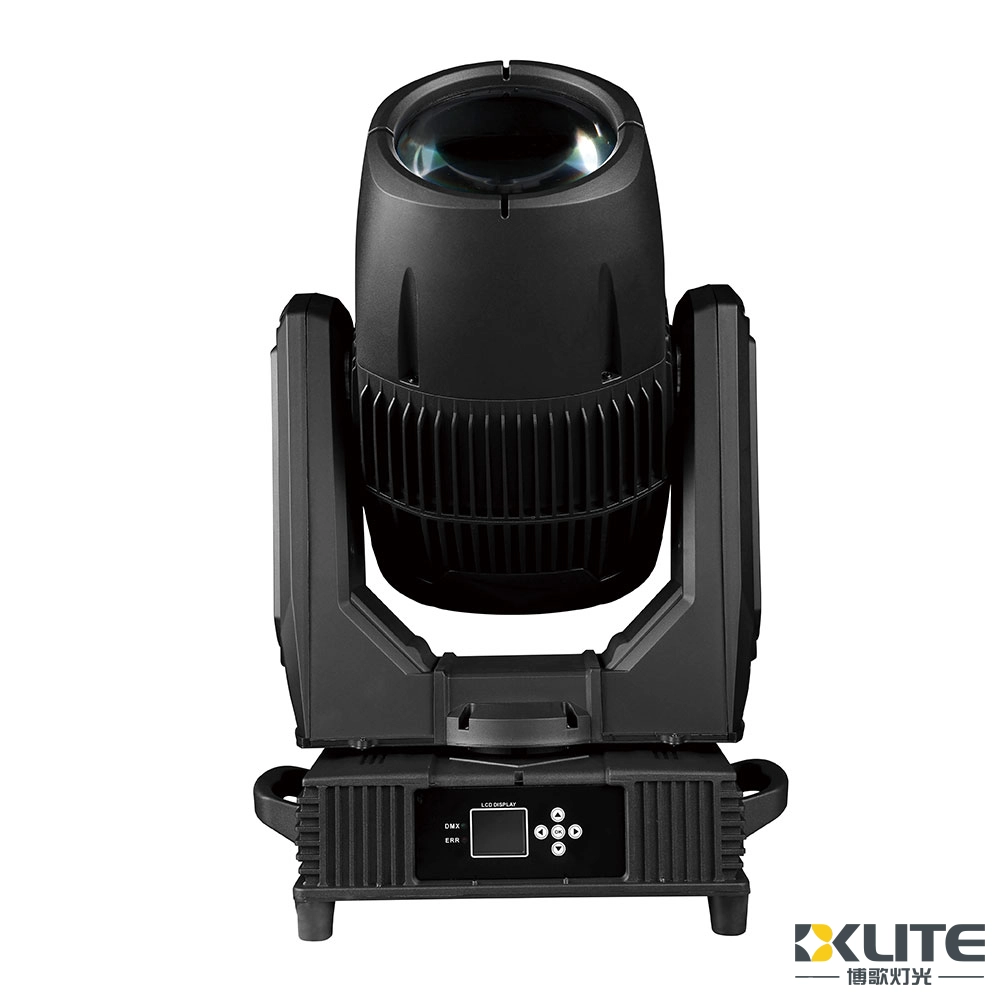

Waterproof IP66 420W beam moving head light
Voltage: AC90V-235V 50-60Hz
Power supply: 600W
Light source system: 420w (Philip lamp)
Color wheel: Color plate: 14+ colorful rainbow effect + atomization function
Fixed gobo wheel: 17 fixed gobos + open
Focus: Electronic focus
Frost: 1 frost lens
DMX channels: 16 CH or 28
IP Rating: IP66
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Buyer Protection: We Keep Buyer Information Completely Confidential!
More parameters
| Specification | Details |
| Input Voltage | AC90V-235V 50-60Hz |
| Power | 600W |
| Light Source | 420W (Philip Lamp) |
| Color Temperature | 7900±500K |
| Color Wheel | 14 colors + colorful rainbow effect + frost |
| Gobo Wheel | 17 fixed gobos + open |
| Focus | Electronic focus |
| Frost | 1 frost lens for soft wash effect |
| Strobe | Double-motor independent strobe, 0.5-20Hz/s, adjustable speed |
| Motor | XY axis uses a three-phase motor for high stability and accurate positioning |
| Dimming Curve | 0%-100% linear dimming, smooth and flicker-free |
| Beam Angle | 0-2° |
| Channel Modes | 24CH / 28CH |
| Lens Diameter | 165mm |
| IP Rate | IP66 |
| Control Mode | DMX512, Auto, Master-Slave, RDM, remote address setting via large controller |
| Prism | 8-facet prism and 8+16-facet prism (customizable) |
| Display | LCD display, rotatable 180° |
| Body Material | Cast aluminum + outdoor engineering plastic shell |
| Pan | 540° + 8/16-bit fine adjustment |
| Tilt | 270° + 8/16-bit fine adjustment |
| Fixture Size | 36 × 31 × 60 cm |
| Net Weight (N.W.) | 20KG |
| Gross Weight (G.W.) | 24KG |
Voltage: AC90V-235V 50-60Hz
Power supply: 600W
Light source system: 420w (Philip lamp)
Color temperature: 7900±500K
Color wheel: Color plate: 14+ colorful rainbow effect + atomization function
Fixed gobo wheel: 17 fixed gobos + open
Focus: Electronic focus
Frost: 1 frost lens
Strobe: 0.5-20 times/second
Motor: The XY axis uses a three-phase motor, which makes the speed of the lamp highly stable and the positioning angle accurate!
Dimming : 0%-100%
Beam angle: 0-2°
DMX channels: 16 CH or 28
IP Rating: IP66
Control mode: DMX 512, self-propelled, master-slave self-propelled, RDM function, can use large controller to control remote address code.
Prism system: 8 prisms and (8+16) prisms (prisms can be configured according to customer requirements).
Display: LCD display screen, adapt to different installation positions, can rotate 180°
Horizontal and vertical: three-phase motor
Pan: 540°
Tilt: 270° rotation
Cooling system: The heat dissipation of the lamp body plus the intelligent fan drainage cooling system uses the air convection system method to use the software to analyze and calculate the heat flow of the lamp, quickly solve the internal heat of the body, extend the light decay time of the light source, ensure the service life of the bulb, and design a low-noise cooling system with excellent fan drive performance and extremely low noise.
Cast aluminum + outdoor engineering plastic shell
Dimension: 43*26*63cm
N.W : 25 KG G.W.: 30 KG
Masterpiece: high-end appearance, huge energy, thick light column. The waterproof beam lamp has reached high standards in terms of optics, structure, appearance, etc. It uses the most advanced technology, high-brightness light sources, optical technology, and rigorous industrial design to ensure the perfect presentation of lighting design.
